Description

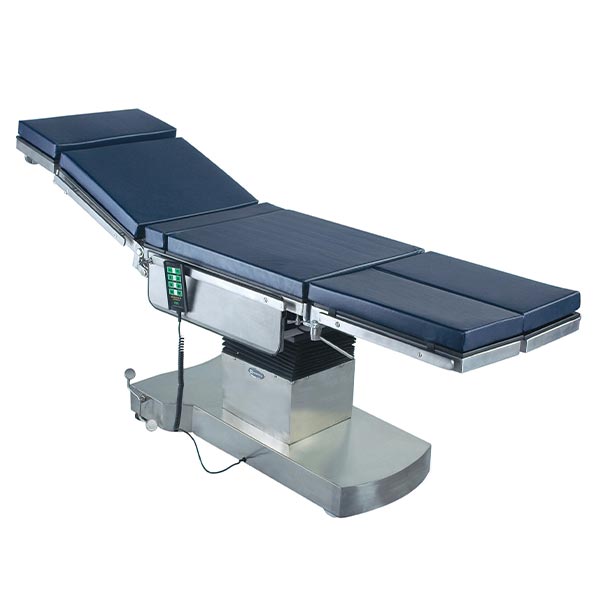

- The five section table top is X-ray translucent and is equipped with removable, antistatic 50 mm thick mattresses.
- The base & column of the table is made of high quality medical stainless steel (Grade – 304). Non- reflecting surface, antibacterial & is easy to clean.
- The table can provide with a top sliding of 250 mm, Dual Leg Section & Battery backup as per consumer requirement. (Optional)
- Hanging Orthopedic Attachment including Pelvic Support, Tibia Nailing & Femur Nailing enables the limbs to perform strain free.
- Height adjustment, Lateral Tilts, Trendelenburg, and Flex – Reflex, Chair Position and Longitudinal Sliding top are realized by Remote control.
- Head and Leg sections are detachable & interchangeable.
Technical Specification :
| Top dimension | L 1960 x W 533 mm |
| Height adjustment | 750 mm – 1000 mm |
| Table top sliding | 250 mm |
| Trendelenburg / Reverse | 30° / 25° |
| Lateral tilt | 20° / 20° |
| Kidney elevator | 150 mm |
| Back Rest (up / down) | 80° / 25° |
| Leg Rest (up / down) | 15° / 90° |
| Head Rest (up / down) | 20° / 60° |
| Power supply | 24VDC |
| Battery Backup | 3 hrs. |
| Patient Weight Capacity | 300 Kgs (666 lbs) |
 |
